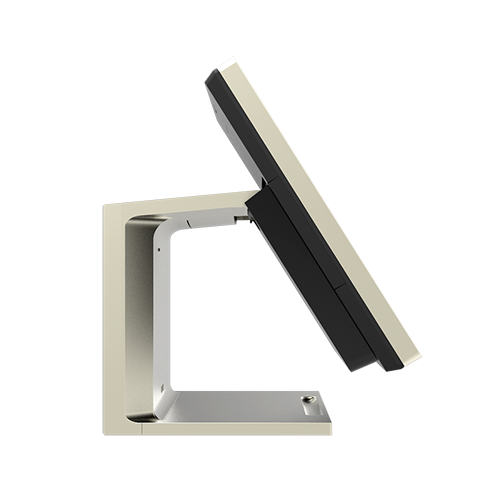

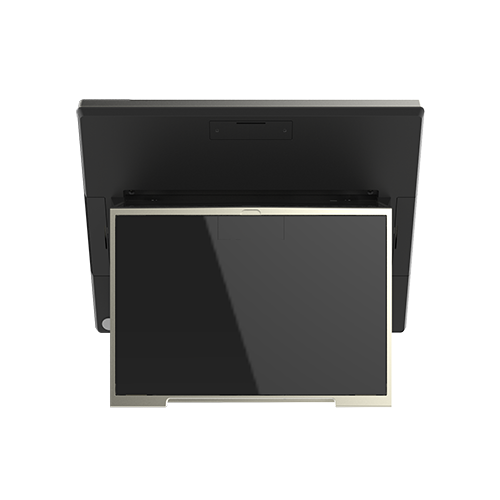

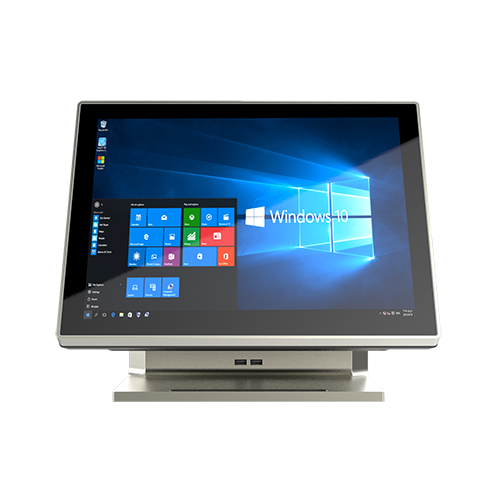

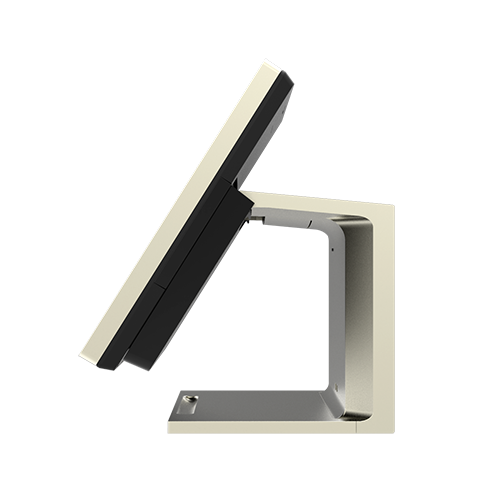

Dragon icon DYNASTY (X7G)

A new dynasty in Apollo Lake POS has begun with EBN Dynasty The era of legacy design rules in POS is at an end with the birth of the EBN Dynasty Apollo Lake. Revolution cannot simply explain the new order Dynasty Apollo Lake brings to the market, the evolution against the industry standards starts here.

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Key Features

  • Intel® Apollo Lake Atom™ x7-E3950 provides over 2 times higher GPU computing power than Baytrail
  • The newest intel® Atom™ SBC solution is well embedded for POS application
  • Industrial grade processor integrated with sensor hub specified for IOT applications
  • Worldwide fastest SBC POS consumes the lowest power than ever
  • Bulky but slim contour fits in a variety of interior designs
  • Upward I/O connectors for easy installation and service
  • Fully compatible Windows 10 and Linux
  • Tool-free serviceability

System reliability

  • IP-65 is fulfilled by seamless seal
  • High ESD immunity up to 15KV
  • Low thermal resistance lower than 2oC/W achieved by effective thermal module
  • No Electrolytic capacitors, but Solid capacitors
  • Industrial grade processor runs between -40o C~+110o C
  • One thumb screw assembly design concept

Extended devices

  • High scalability reached by fullranged devices options

Small footprint

  • Amendable base plate allowing table-fixing installation



Specifications

Main Board
Main Board Name X7G
CPU Intel Apollo Lake SoC processor: Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz) Intel® Atom™ x7-E3940 (Quad Core, 2M Cache, up to 1.8 GHz) Intel® Atom™ x7-E3930 (Dual Core, 2M Cache, up to 1.8 GHz)
System Memory SO-DIMM DDR3L up to 1866MHz x 1, Max. 8GB
Graphic Intel® HD Graphics 505 / Intel® HD Graphics 500
BIOS AMI BIOS
O.S. Support Windows 10
EC EBN-specified embedded controller
Cooling Solution Fanless conductive thermal module
Display
Size 15" 4:3 Industrial grade panel (Option 15.6” 16:9)
Panel backlight type LED with 50K hours of life
Brightness 250 nits
Resolution 1024x 768 (1366 x 768 optional for 15.6“ model)
Touch Screen P-cap multitouch with 7H hardness cover lens
Front panel type True flat bezel free with IP65 compliant
Tilt Angle 20°~60°
Storage Device
Interface SATA-3 (6.0Gb/s) x 2
HDD or SSD mSATA slot x 1 (for SSD) 2.5” HDD or SSD (Option) x 1
Indicators
- Power
Wireless Connectivities
Dual Band WiFi & Bluetooth Intel AC3160 802.11 ac/a/b/g/n Wireless LAN with BT4.0 combo, half size mini PCIE type (Option)
I/O Ports
Serial Serial Port x 6, DB-9 Pin9 with RI/5V/12V selectable by BIOS. COM 1: RS-232, RJ-50 with convert to DB-9 cable COM 2: RS-232, RJ-50 with convert to DB-9 cable COM 3: Reserve COM 4: Reserve COM 5: RS-232, Internal reserved for 2x20 VFD Customer Display
USB USB 3.0 x 2 USB 2.0 x 2
Cash Drawer RJ12, support 12V / 24V DC cash drawer x 1
Audio 2W Speaker x 1
DC-in 19~24V DC input, Radio jack x 1
Giga LAN Gigabit Ethernet by RJ-45 x 2, support Wake on LAN
PUH (Power USB Hub) module 24V PoweredUSB x 1 12V PoweredUSB x 2 USB2.0 x 2 24V DC-out x 1 External 120W 24V DC adapter
Display Port mini DP x 1 (supporting active converter cable to VGA, DVI, HDMI) Option: Cable @ DP-to-VGA, DP-to-DVI, DP-to-HDMI
Physical Dimensions
Dimension ( WxDxH ) 36 x 21.5 x 30.6 cm (14 x 8.5 x 12 inch)
Net Weight / Gross Weight 6.6 kg ,14.6 lb / 8.6kg, 19 lb
Others
Mounting mechanism Support VESA Mount Panel-mounting and Rear-mounting bracket
Power Supply External 65W 19V DC Option: External 120W 19V DC
Color Titanium-Black, Titanium-White; Gold-Black, Gold-white, Titanium-colors With standard powdered painting finishing, optional in electroplated with hairline finishing
Housing Color Titanium-Black, Titanium-White; Gold-Black, Gold-white, Titanium-colors With standard powdered painting finishing, optional in electroplated with hair-lined finishing
Material Aluminum-Zinc Alloy
Certifications CE / FCC / WEEE / RoHS / VCCI / CCC
Ingress Protection IP65 @ front panel
Environmental Conditions
Storage Temperature -40 ~ 85° C (-40 ~ 185° F)
Operating Temperature With extended temperature SSD/mSATA/RAM/Adapter : -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s air flow With standard system configurations: 0 ~ 50°C (32 ~ 122°F) with 0.7m/s air flow
Relative Humidity 95% @ 40°C (104°F), non-condensing

Ordering Information

Main Unit Ordering Information
Part No. Description
DNPOS70P-5BT-E3950 Fanless Touch POS Terminal w/ 15" TFT LCD, Atom™ x7-E3950 2.0 GHz, Black / Titanium
DNPOS70P-5BT-E3950 Fanless Touch POS Terminal w/ 15" TFT LCD, Atom™ x7-E3950 2.0 GHz,White / Titanium
DNPOS70P-5BT-E3940 Fanless Touch POS Terminal w/ 15" TFT LCD, Atom™ x7-E3940 1.8 GHz, Black / Titanium
DNPOS70P-5BT-E3940 Fanless Touch POS Terminal w/ 15" TFT LCD, Atom™ x7-E3940 1.8 GHz,White / Titanium
DNPOS70P-5BT-E3930 Fanless Touch POS Terminal w/ 15" TFT LCD, Atom™ x7-E3930 1.8 GHz, Black / Titanium
DNPOS70P-5BT-E3930 Fanless Touch POS Terminal w/ 15" TFT LCD, Atom™ x7-E3930 1.8 GHz,White / Titanium
