Dragon icon IoT BoxPC BPC10

Embedded IoT Box PC Fanless Embedded IoT Box PC, robust housing with Intel® SkyLake and Kaby Lake CPU, comes with 8GB of DDR3L memory and optional mSATA or 2.5” SATA storage support. Versatile I/O connectivity is provided by 5x RS232, 1x RS232/RS485, 2x USB 3.0, 4x USB 2.0, 2x GbE, while expansion is supplied by mini-PCIe slots for optional variety of Wi-Fi / 3G connections. Supported operating systems include Windows 7 (Skylake only) / Windows 10 / Linux kernel 4.0+ & associated distributions.

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Key Features

  • Support industry I/O port
  • Support Linux kernel 3.0 / Windows7 / Windows10
  • Internal mini-PCIe socket support optional variety of Wi-Fi / 3G connectivity

Specifications

Main Board
CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)(formerly Bay Trail)
System Memory Support DDR3L 1333 MHz, 1* SO-DIMM Slot, Up to 8GB
BIOS AMI UEFI BIOS
O.S. Support - Windows Embedded POSReady 7 (64bit only) - Windows 7 Professional for Embedded System (64bit only) - Windows Embedded 8 Industry (64bit only) - Windows 10 - Linux kernel 3.0+ & associated distributions
Cooling Solution Fanless
Storage Device
HDD or SSD 2.5" HDD or 2.5” SSD x 1 (SATA 3.0)
mSATA SSD mSATA SSD from miniPCIe socket x 1
I/O Ports

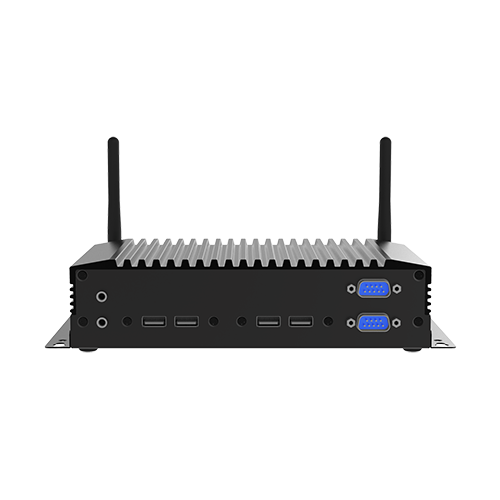

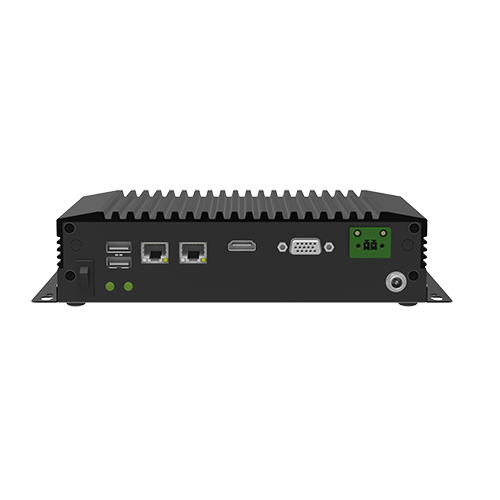

USB Front:USB2.0 x 4 Rear:USB3.0 x 1, USB 2.0 x 1
Audio Front:MIC-in x 1, Line-out x 1
DC-in Rear:2-pins 12V DC input with lock connector x 1
PCI/e Mini-Card slot, or Optional M.2 card Mini PCI Express x 2
LAN Rear:Gigabit Ethernet by RJ-45 x 2, support Wake on LAN
Display Port Rear:HDMI x 1, VGA x 1
LED Rear:Power status x 1, Storage x 1
COM1 Front:DB9 for RS232 x 1
COM2 Front:DB9 for RS485 x 1
Remote Power Switch Rear:Remote power on/off switch x 1
Physical Dimensions
Dimension ( WxDxH ) 20 x 5 x 12 cm ( 7.9 x 2 x 4.7 inch)
Weight 1.7 kg
Others
Mounting mechanism Support wall mount kit
Communication Wireless LAN module, mini PCIe type (Optional)
Expansion Slot Mini PCIe x 1
Color Black
Material Aluminum / SECC
Certifications CE / FCC / VCCI / CB
Environmental Conditions
Storage Temperature -20~ 70°C
Humidity 95% @ 40°C (non-condensing)
Operating Temperature Ambient with air flow: -20°C to 60°C
