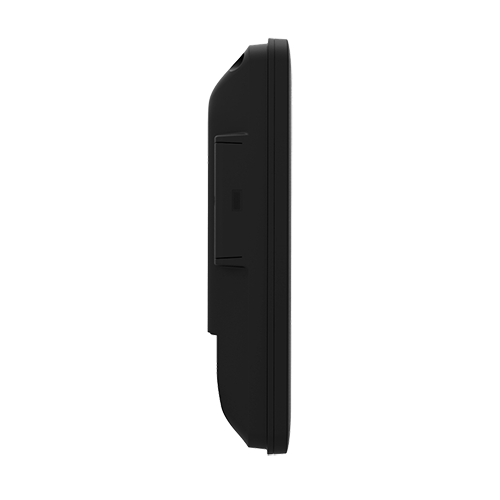

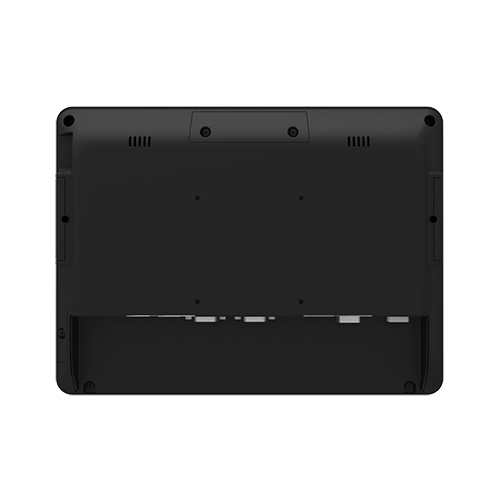

Dragon icon X-PPC 710

Ideal Touch Fanless Touch Panel PC Fanless Touch Panel PC powered by next generation Intel® Bay Trail platform and featured variety I/O interface for industrial applications

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Kety Feature

  • Next generation Intel® Bay Trail platform with outstanding performance, 6.5x than Atom N270
  • Front panel IP 65 protection
  • Fanless, silent, reliable and compact size design
  • Support Pole/Arm moutable with VESA standar



Specifications

Main Board
Main Board Name X7C
CPU Intel® Bay Trail-Mobile/Desktop SoC Processor: - Celeron® N2930 (4 cores, up to 2.16 GHz, TDP 7.5 Watt) - Celeron® J1900 (4 cores, up to 2.42 GHz, TDP 10 Watt) J4125 or J6412(Developing) or Alder Lake N(Developing)
System Memory SO-DIMM DDR3L 1067/1333MHz x 1, Max. 8GB
Graphic Intel® HD Graphics
BIOS Phoenix uEFI BIOS
O.S. Support Windows Embedded POSReady 7 Windows 7 Professional for Embedded Systems Windows Embedded 8.1 Industry Windows 10 Linux kernel 3.0+ & associated distributions Android 4.4.4 Compliant OS
Cooling Solution Fan-less

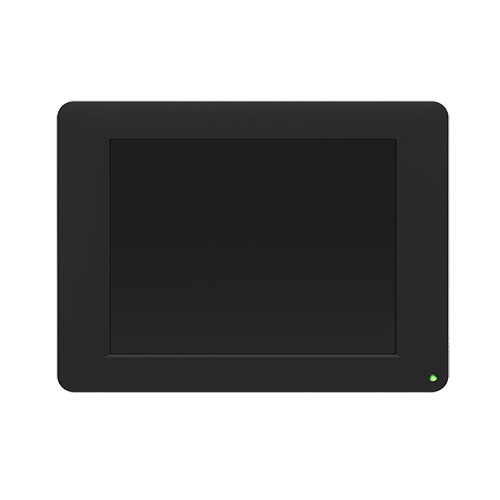

Display
Size 10.4" 4:3 Industrial grade panel
Panel backlight type LED
Brightness 400 nits (typ. w/o touch)
Resolution 1024 x 768
Touch Screen 5-wire resistive type
Front panel type With-Bezel
Tilt Angle 17° ~ 67°
Storage Device
Interface SATA2 (3.0Gb/S) x 2
HDD or SSD 2.5" SATA HDD / SSD x 1 mSATA slot x 1

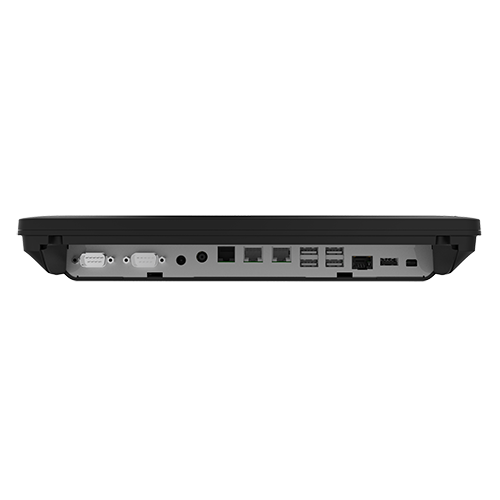

I/O Ports
Serial Serial Port x 6, DB-9 Pin9 with RI/5V/12V selectable by BIOS. COM 1: RS-232, RJ-50 with convert to DB-9 cable COM 2: RS-232, RJ-50 with convert to DB-9 cable COM 3: RS-232/422/485, DB-9 COM 4: RS-232, DB-9, pin9 with RI/5V/12V selectable by BIOS (can be replace by VGA) COM 5: RS-232, Internal reserved for MSR COM 6: RS-232, Internal reserved for 2x20 VFD Customer Display
USB USB 3.0 x 1 USB 2.0 x 4
Cash Drawer RJ-12 x 1, support 12V / 24V DC cash drawer
Audio 2W Speaker x 2
VGA Optional DB15 x 1 for replace COM4, with 0/12VDC selectable by BIOS.
Expansion Slot Half size Mini PCIe x 1
DP / HDMI Mini DisplayPort x 1 (supporting active converter cable to VGA, DVI, HDMI)
DC-in 19VDC input, 2-pins radio jack x 1
LAN Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
DC-out 12VDC/1A output, 2-pins radio jack x 1
Physical Dimensions
Dimension ( WxDxH ) 29.3 x 4.5 x 21.8 cm (11.5 x 1.8 x 8.6 inch)
Net Weight / Gross Weight 2.7 kg, 6 lb / 4.2 kg, 9.3 lb
Others

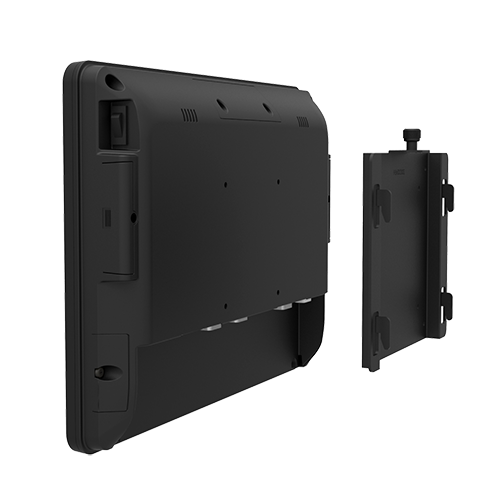

Mounting mechanism Support VESA Mount
Expansion Slot half size Mini PCIe x 1
Connectivity Wireless LAN module, half size mini PCIe type (Optional)
Power Supply External adapter, 19VDC input, 65 / 90 Watt optional
Color Black
Material Plastic / Aluminum
Certifications FCC / CE / WEEE / RoHS
Environmental Conditions
Storage Temperature -20°C ~ 60°C
Humidity 20% to 85% RH (non-condensing)
Operating Temperature 0°C ~ 40°C

Ordering Information

Main Unit Ordering Information
Part No. Description
XPPC72A-1B-2930 Fanless Touch POS Terminal w/ 10.4" TFT LCD, Intel® Celeron® N2930 2.16 GHz
XPPC72A-1B-1900 Fanless Touch POS Terminal w/ 10.4" TFT LCD, Intel® Celeron® N1900 2.42 GHz
Optional Accessories Ordering Information
Part No. Description
A0400943 Wireless LAN: IEEE 802.11 b/g/n, USB Type
20900025 OS License:Windows® 7 Professional for Embedded Systems, English Version
20900028 OS License: Windows® Embedded Standard 7, English Version
20900029 OS License: Windows® Embedded POSReady 7, English Version
20900002 OS License: Windows® Embedded for Point of Service(WEPOS), English Version
20900033 OS License: Windows® Embedded 8.1 Industrt Pro Retail
T.B.D. Customer display: VFD Pole, 20 Columns x 2 lines, RS-232 Type
T.B.D. 19VDC, 90Watt adapter
